4 リモート目視検査のための明確な非破壊テストボアスコープFLX-DR4555F
$0.00
4 ways 120 degrees rotating
Electronic Controlling
OEM/ODM Service
- 説明
- 問い合わせ
説明

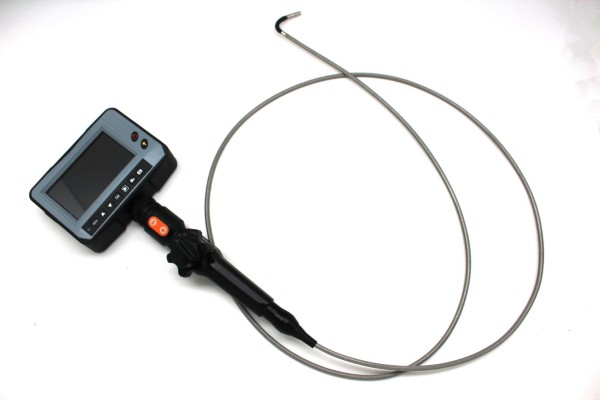

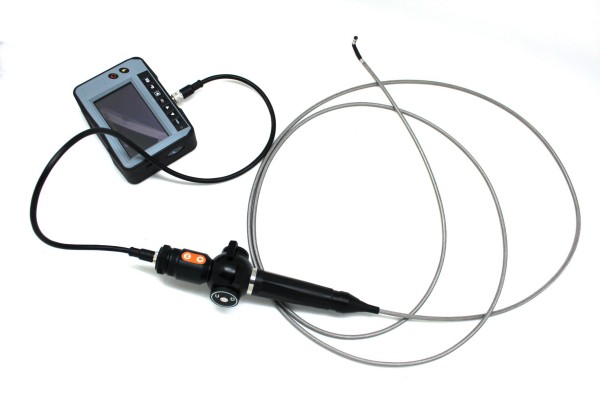

4 Ways Articulation Non Destructive Testing Borescopes for Remote Visual Inspection FLX-Dr4555F
応用:
1. The endoscope camera is for the inspection of aircraft, turbines, welds, engines, motors and pipes..
2. 4 way articulation, each above 120degrees.
3. ビデオレコードをサポートしています, picture snap and waterproof IP 67.

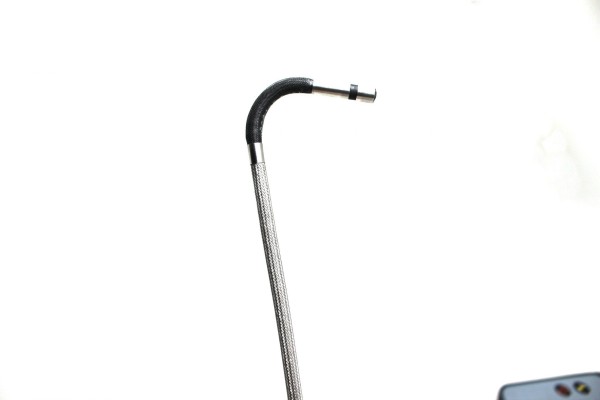

These units feature a insertion tube which view and capture every detail of your inspection with 4 way articulation, each above 120degrees. The insertion tube features a compact (5.5mm dia) detachable design which is completely waterproof(IP67) and contains 6pcs LED lights to provide consistent illumination. The light intensity can be easily controlled to avoid flaring.

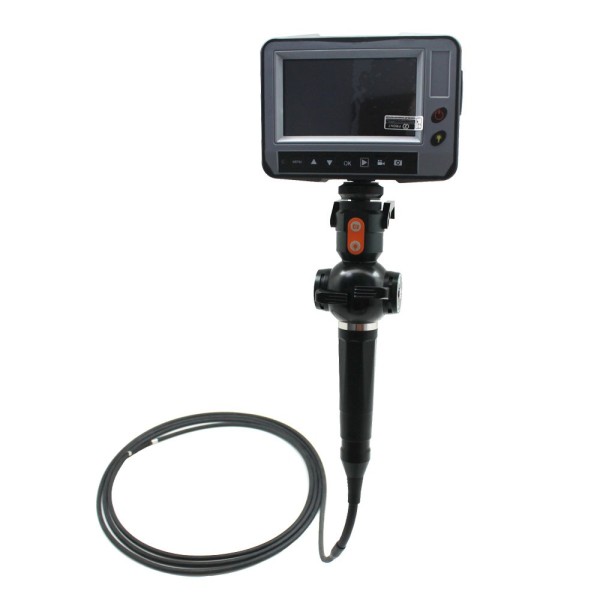

The 5inch LCD display with control part with video (avi) and image (JPEG) capture of your inspections saved directly to an SD memory card. And the rechargeable lithium battery packs provide continuous operation.
Insertion Tube Specifications | イメージセンサー:CMOS Image Sensor, 450,000 pixels 解決(Dynamic/Static):720(h)x525(v)(N) / 720(h)x625(v)(P) Insertion Tube Tip Diameter:5.5 mm Camera Length:23mm Insert tube:Tungsten braid/Stainless steel Exposure:自動 White Balance:Fixed Field-of View (FOV):90°, Articulation:4 way turnaround , Left , Right , Up and Down , each above 120 ° Depth-of-Field (DOF):10 – 150 mm Light Source:6 White LED Camera shell:Alloy steel Length insertion tube：1.5 M Standerd, 5M Max. Waterproof Standard:IP67 |
The display & control part | 画面:4.3インチ 16:9 TFT LCD Monitor Video Output Format:NTSC & 仲間 Real time clock with photo and video Recording Medium:SD Card 言語:英語 USB Connector:Micro USB Video output:TV Out Recording media:SDHC Card 写真:1600X1200 Jpeg ビデオ:640×480/1280×720 avi Power Supply:リチウム電池: 3.7v, 3000maH Adapter:100-240VDC out put:5V DC Operating Environment: Insertion tube :0-80°; Other parts :0-40° OperatingHumidity:15-90RH |

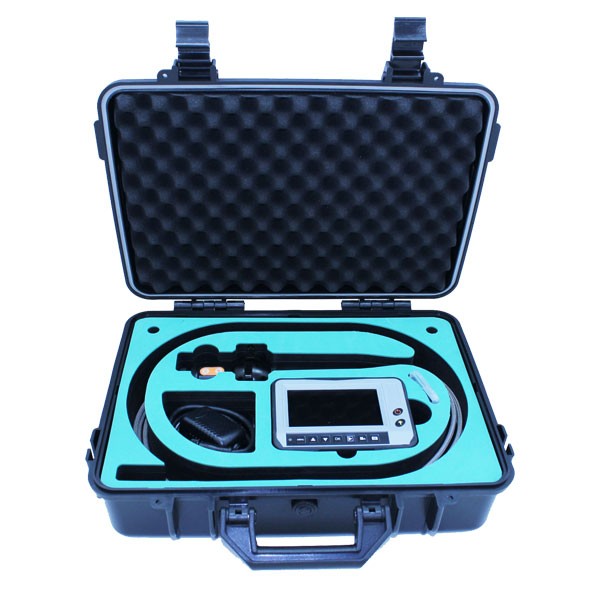

The others parts | 充電器, ケーブルを接続します, 運用マニュアル |
