説明

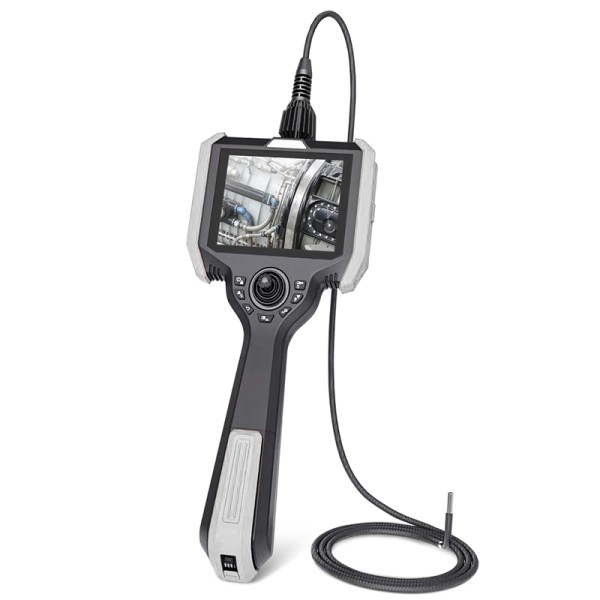

360°3.9mmプローブFLX-G39を備えた関節内視鏡
アプリケーション
- The360° articulated endoscope is for the inspection of aircraft, turbines, welds, engines, motors and p It supports video record, 写真のスナップ, Image enlargement, image freeze, image rotation, analog ruler function and waterproof IP 67.

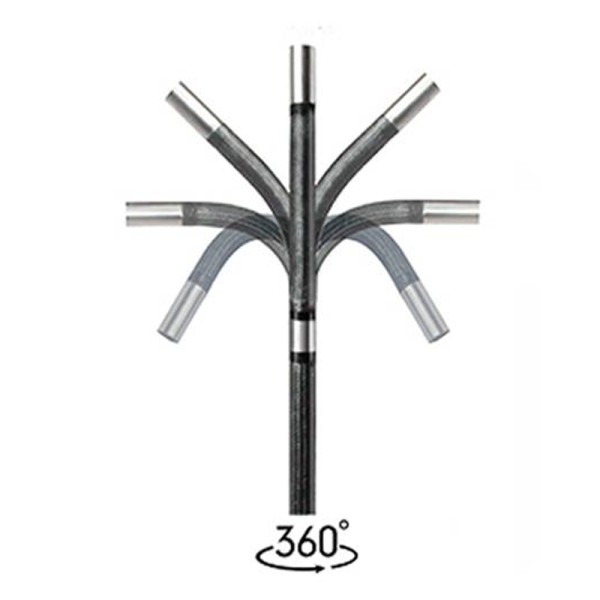

- These units feature ainsertion tube which view and capture every detail of your inspection with 360° articulation, bending angle up to 180° according to different length. The insertion tube (9mm dia) is waterproof IP67 and contains LED lights to provide consistent illumination.

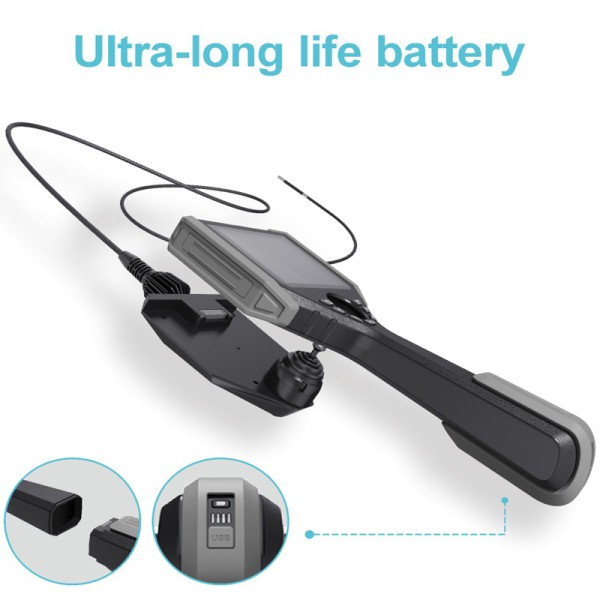

- The 5inch LCDdisplay with control part with video (MP4) and image (JPEG) capture of your inspections saved directly to a 32G TF And the rechargeable 3000maH lithium battery packs provide 5 hours continuous operation.
| Environment request | |
| Working temp. | -10℃-50℃, no preheat need（customized -40℃-85℃） |
| Probe working temp. | -20℃-70℃ (customized temp.) |
| Storage temp. | -30℃-50℃ |
| Relative humidity | max 90%,No condensation |
| 防水 | Insertion tube IP67 |
| Host | |
| Measurements | 350*155*59mm |
| Battery working time | ≧ 4 時間 |
| 重さ | 1kg,with suitcase：5kg |
| 画面 | 5 inch IPS HD LCD |
| Display Resolution | 1024X768 |
| TF card support | 32GB(max 128GB) |
| ビデオ出力 | HDMI HD Interface |
| Probe | |

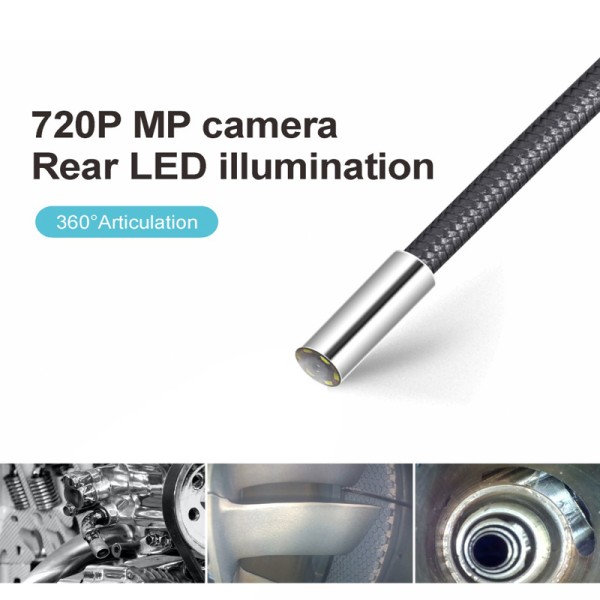

| Illumination Type | Integrated lighting adjustable LED light(8-レベル調光) |
| View of angle | 120°(default) |
| Depth of field | 8mm-120mm (default); |
| Pixels | 1 million pixels |
| Outer diameter | 3.9 mm |
| Length of the insert tube | 1 メートル (1-6 meters optional) |
| System/software | |
| 対応OS | WES |
| Video/Image format | MP4/JPEG(.jpg) |
| Image Control | Freezing, ズーミング, take picture, video record, flip, analog ruler functions |
| Zoom | 4x~5x |
| System language | English\ German\ Spanish \French\ Italy\ Japanese\ Chinese |
