4 Way artikuláció 8,5 mm-es videoscope Borescope ipari endoszkóp kígyó kamera FLX-DR4585F

4 módon artikuláló endoszkóp videoszkóp boreszkóp FLX-Dr4555F
4mm-es, 4 irányú csuklós, rugalmas NDT roncsolásmentes vizsgálat Vizuális ellenőrzés RVI Video Scope Borescope FLX-Dr4540F

$0.00

4 ways 120 degrees rotating
Electronic Controlling
OEM/ODM Service

Kategória: Címkék: , , ,

Leírás


This camera can be used in machine inspection, wall inspection, auto maintains,
engine inspection, plane repair, emergence rescue, army explore, pipe inspection,
narrow space detection, air duct inspection and so on.

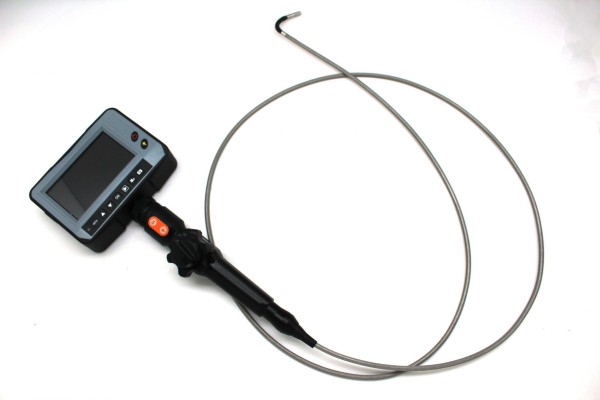

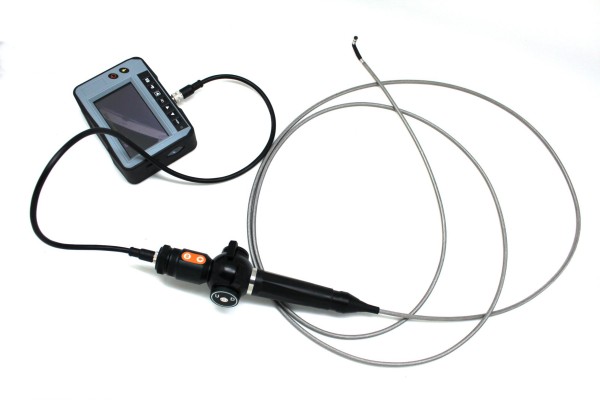

4 way articulating endoscope videoscope borescope FLX-Dr4585F


Alkalmazás:

1. The endoscope camera is for the inspection of aircraft, turbinák, hegesztési varratok, motorok, motors and pipes..

2. 4 way articulation, each above 120degrees.

3. Támogatja a videofelvételt, picture snap and waterproof IP 65.

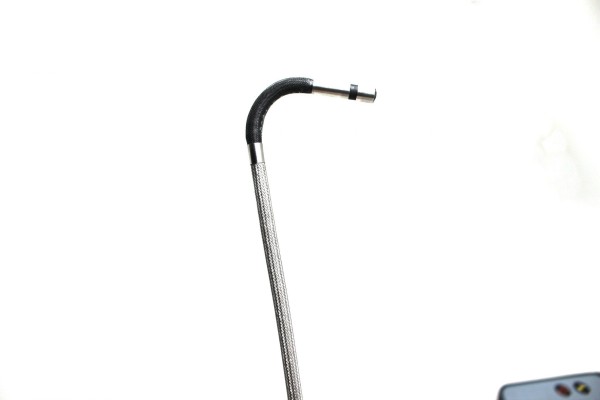

These units feature a insertion tube which view and capture every detail of your inspection with 4 way articulation, each above 120degrees. The insertion tube features a compact (8.5mmm ő) levehető kivitel, amely teljesen vízálló(IP65) and contains 6pcs LED lights to provide consistent illumination. A fény intenzitása könnyen szabályozható, hogy elkerülje a kiszélesedést.

The 5inch LCD display with control part with video (Avi) és kép (JPEG) capture of your inspections saved directly to an SD memory card. And the rechargeable lithium battery packs provide continuous operation.


Insertion Tube Specifications

Képérzékelő:CMOS Image Sensor, 310,000 pixels

Felbontás(Dynamic/Static):720(H)x525(V)(N) / 720(H)x625(V)(P)

Insertion Tube Tip Diameter:8.5 mm

Camera Length:18mm

Insert tube:Rozsdamentes acél

Exposure:Automatic

White Balance:Fixed

Field-of View (Fover):55°,

Articulation:4 way turnaround , Left , Right , Up and Down , each above 120 °

Depth-of-Field (DOF):30mm – Infinity

Fényforrás:6 White LED

Camera shell:Alloy steel

Length insertion tube：1.5 M Standerd, Max 3m

Waterproof Standard:IP65

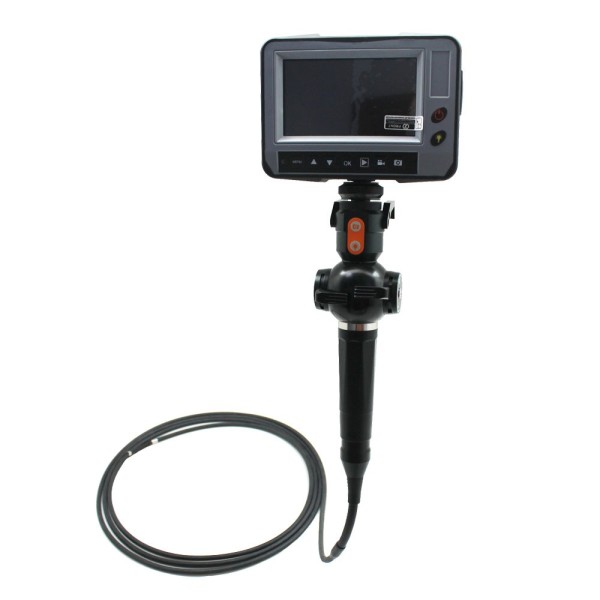

The display & control part

Kijelző:4.3hüvelyk 16:9 TFT LCD Monitor

Video Output Format:NTSC & HAVER

Real time clock with photo and video

Recording Medium:SD Card

Nyelv:angol

USB Connector:Micro USB

Video output:TV Out

Recording media:SDHC Card

Fénykép:1600X1200 Jpeg

Videó:640×480/1280×720 avi

Power Supply:Lítium akkumulátor: 3.7V, 3000maH

Adapter:100-240VDC out put:5V DC

Operating Environment: Bevezető cső :0-80°; Other parts :0-40°

OperatingHumidity:15-90RH

The others parts

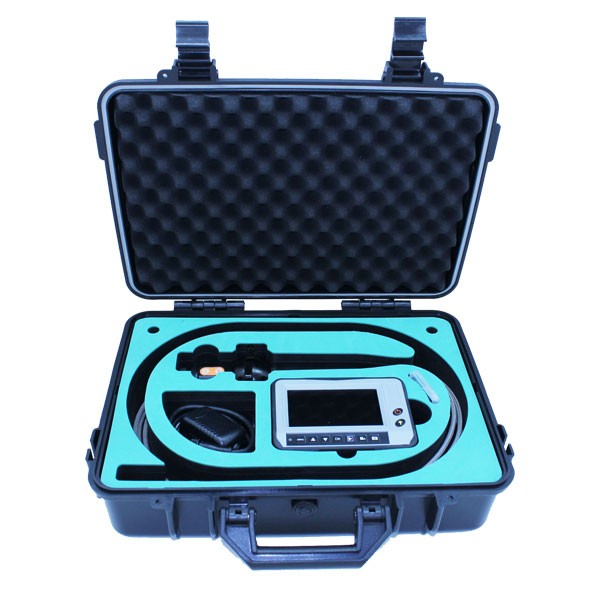

töltő, csatlakoztassa a kábelt, kezelési kézikönyv



Gyors vizsgálat
