4 A kettős endoszkóp videoScope Borescope 6 mm-es kettős kamera fejével történő artikuláló
$0.00
- Leírás
- Vizsgálat
Leírás

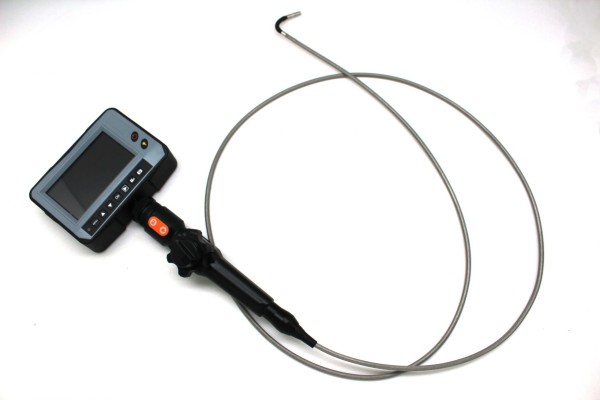

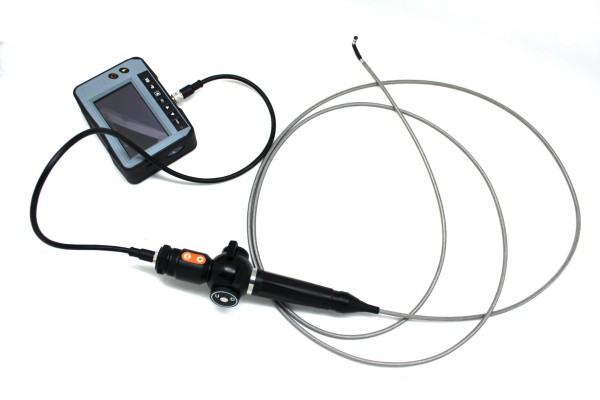

4 way articulating dual endoscope videoscope borescope FLX-Dr4560DF
Alkalmazás:
1. The endoscope camera is for the inspection of aircraft, turbinák, hegesztési varratok, motorok, motors and pipes.

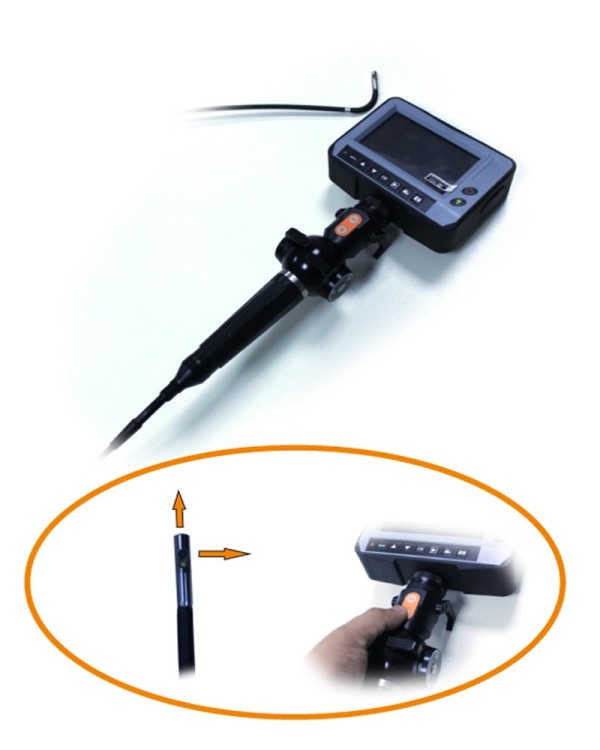

2. 4 way articulation, each above 120degrees.
3. Támogatja a videofelvételt, picture snap and waterproof IP 67.

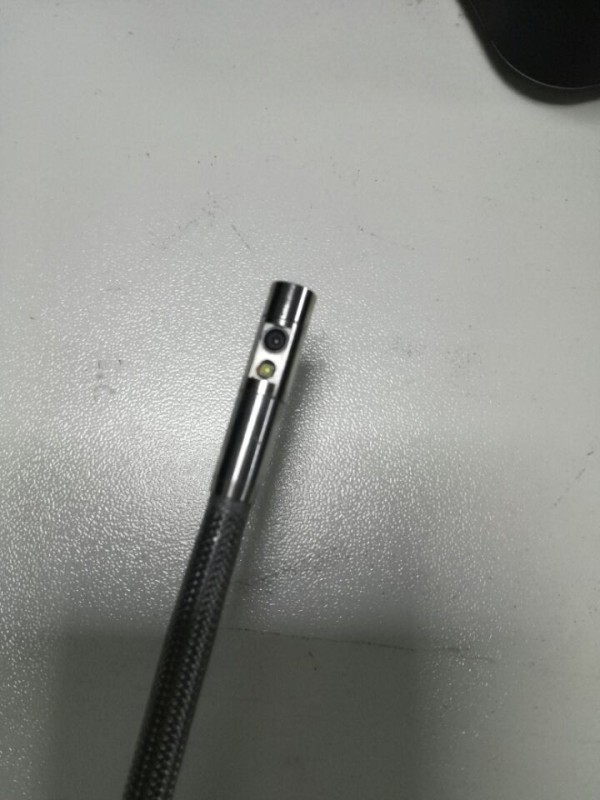

These units feature a insertion tube which view and capture every detail of your inspection with 4 way articulation, each above 120degrees. The dual endoscope is with one forward view camera and one sideview camera, the forward view camera features a compact (6mmm ő) which is completely waterproof(IP67) and contains 6pcs LED lights to provide consistent illumination. The sideview camera is also waterproof IP67 and with 1pc LED light. A fény intenzitása könnyen szabályozható, hogy elkerülje a kiszélesedést.

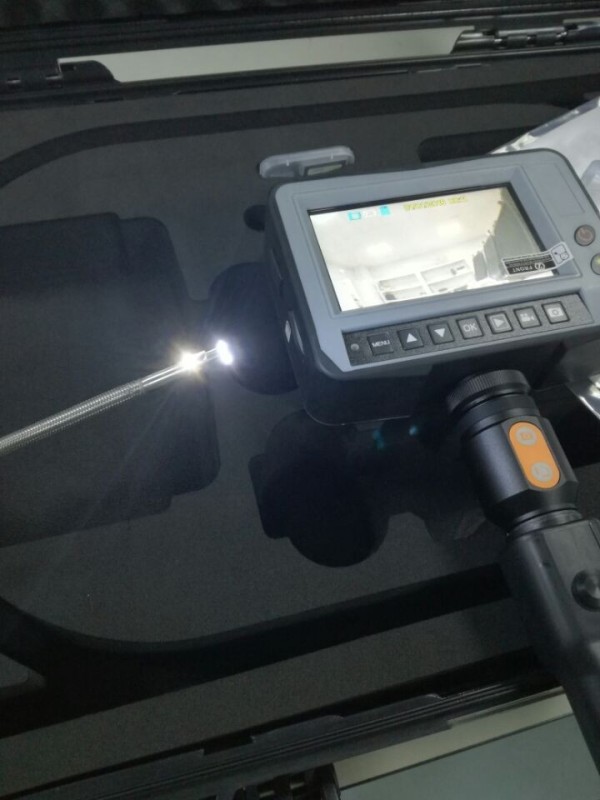

The 4.3inch LCD display with control part with video (Avi) és kép (JPEG) capture of your inspections saved directly to an SD memory card. And the rechargeable lithium battery packs provide continuous operation.
Insertion Tube Specifications | Képérzékelő:CMOS Image Sensor, 450,000 pixels Felbontás(Dynamic/Static):720(H)x525(V)(N) / 720(H)x625(V)(P) Insertion Tube Tip Diameter:6 mm Camera Length:27mm Insert tube:Tungsten braid/Stainless steel Exposure:Automatic White Balance:Fixed Field-of View (Fover):140° & 90°, Articulation:4 way turnaround , Left , Right , Up and Down , each above 120 ° Depth-of-Field (DOF):10 – 100 mm & 10-50mm Fényforrás:6 White LED / 1 Vezetett Camera shell:Alloy steel Length insertion tube：1.5 M Standerd, 5M Max. Waterproof Standard:IP67 |
The display & control part | Kijelző:4.3hüvelyk 16:9 TFT LCD Monitor Video Output Format:NTSC & HAVER Real time clock with photo and video Recording Medium:SD Card Nyelv:angol USB Connector:Micro USB Video output:TV Out Recording media:SDHC Card Fénykép:640X480 Jpeg Videó:640×480 avi Power Supply:Lítium akkumulátor: 3.7V, 4200maH Adapter:100-240VDC out put:5V DC Operating Environment: Bevezető cső :0-80°; Other parts :0-40° OperatingHumidity:15-90RH |

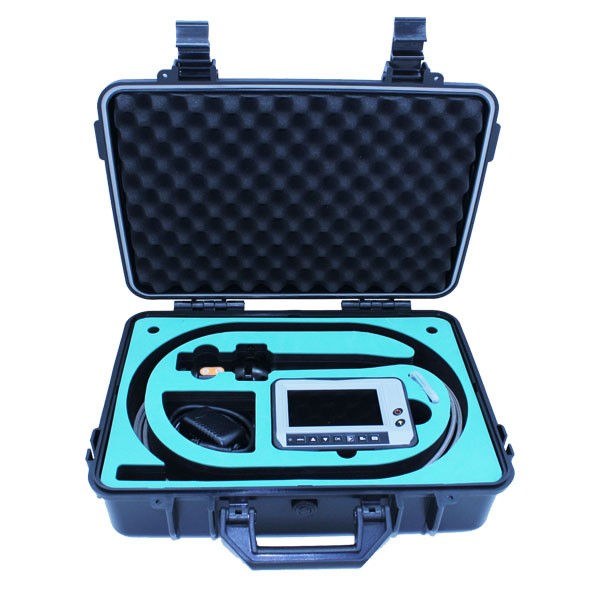

The others parts | töltő, csatlakoztassa a kábelt, kezelési kézikönyv |
