Description

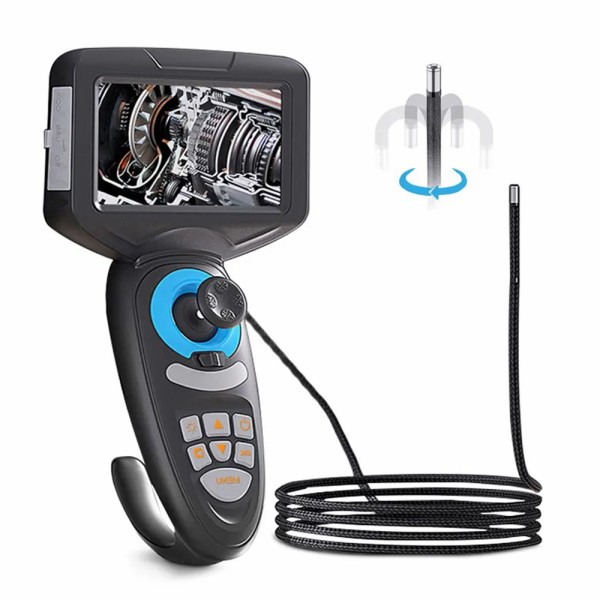

360° Articulating Fiber Optic Endoscope
FLX-FA60
Application
- Portable design, easy to operate, long working time, in a narrow space to check a variety of industrial pipelines or complex equipment corrosion, cracks, welding, foreign body, wear and internal parts processing, and through the fine comprehensive detection;
- In line with the design concept of ergonomics, atmospheric appearance, perfect use feeling, one hand to master the lock function, unique patent omnidirectional control mechanism design;
- The front end is ultra-bright 50,000 optical fiber lighting, optimize the lighting system design, some can be equipped with high brightness optical fiber lighting;

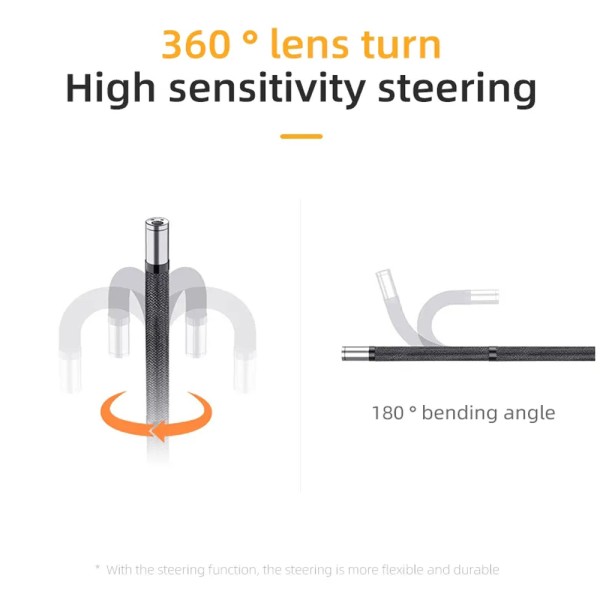

- One hand can be accurate at 360. Control the front-end probe guidance, high performance and economy perfect combination, all in the new generation of FA series handheld;

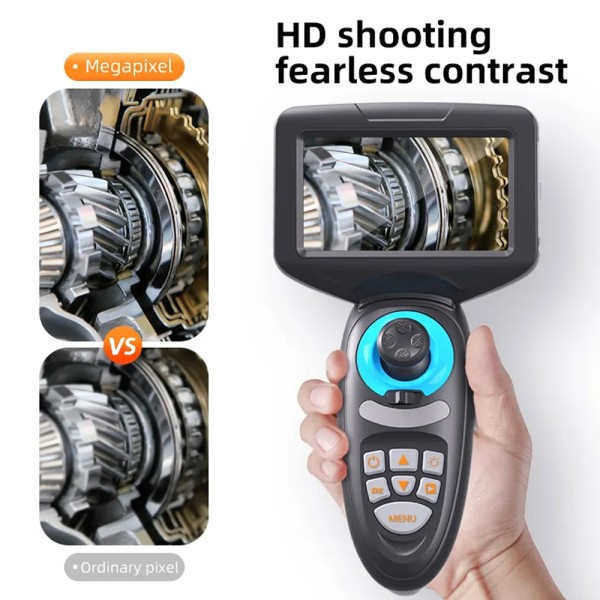

- 4.5-inch LCD smart camera, video integration function, convenient and timely recording of test data;

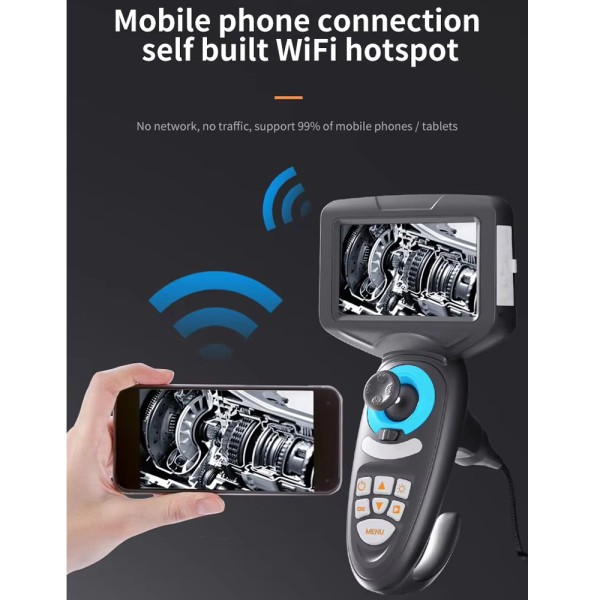

- The built-in WiFi function can transmit images to distant smartphones in real time, making team collaboration more convenient;
Product parameters
- Camera parameters
| external diameter | Φ 6.0mm | Pixel point | 1 Million pixels |
| Probe length | 7 mm | Image sensor | 1/6inch |
| depth of field | From 10-150 mm | angle of field | 120° |
| Observation method | foresight | Lighting type | Rear fiber |
| Bend Angle (top / bottom) | 180° | The joystick controls with Directional direction | Full range of 360 degrees |
| Camera shell | alloy steel | Angle lock | Fixed internal resistance |
| Insert tube length | Standard length 1 m (3m) | Insert tube material | Stainless steel silk tube |
- Probe-oriented parameters
| System weight | Complete equipment including chassis: 2 kg bare machine: <1 kg | Host size | 22.5 cm X 12.5 cm X 12.6 cm |
| source | Lithium battery: 3.7V, 3500 maH adapter: input 100-240VAC 50 / 60HZ , output 5VDC | construction material | Plastic PC case |
| LCD | A 4.5-inch active matrix color display | aiming | Manually adjust the 4 gear |
| The Data I / O port | Wireless WiFi.MicroUSB | internal storage | 32G High-speed SD Card |
| Key function | Menu manipulation, videos, photos, snap | white balance | automatic white balance |
| Image function | Image mirroring, preview, and audio recording | linguistic support | Chinese, English, French, Japanese, German, Korean and other 12 languages |
| image resolution ratio | 1280*720JPG | Video resolution | 1280*720MOV |
- Working environment
| Host system operating temperature | 0°C〜60°C | ambient humidity | 15-90%RH | |

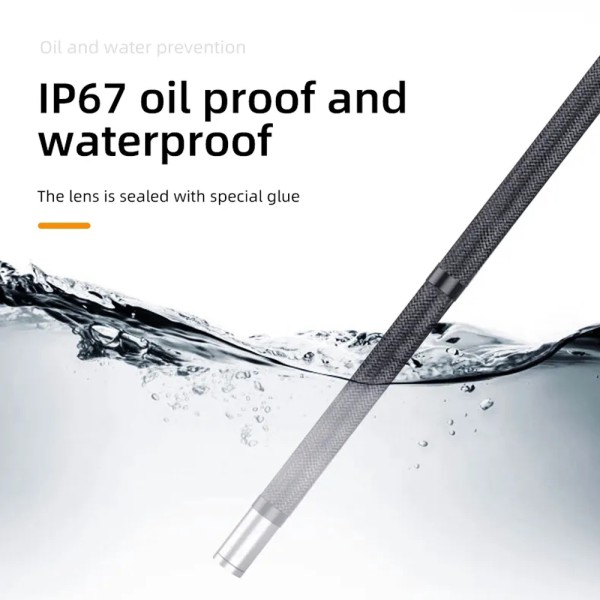

| Video probe operating temperature | 0°C 60°C, below 0°C should reduce boot operations | waterproof | Probe and objective lens can withstand IP 67 waterproof | |
| storage temperature | 0°C〜60°C | |||

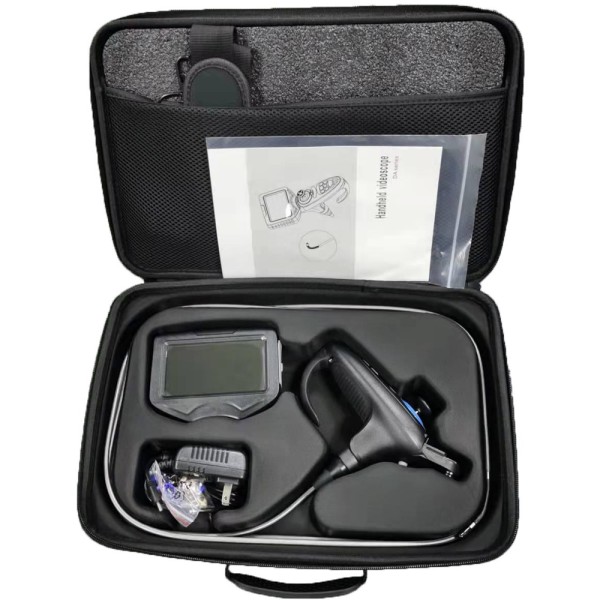

| Packaging accessories | Host handle, pipeline, instrument box, instruction manual, 32 GTF card, card reader, charger, cleaning package | |||
