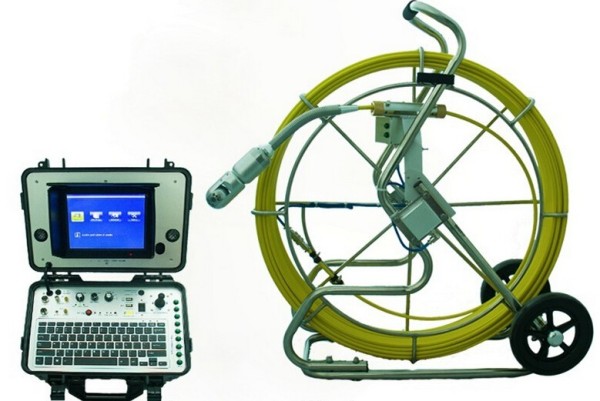

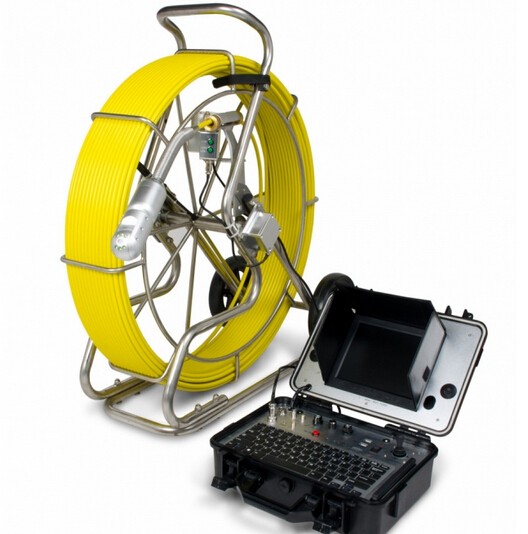

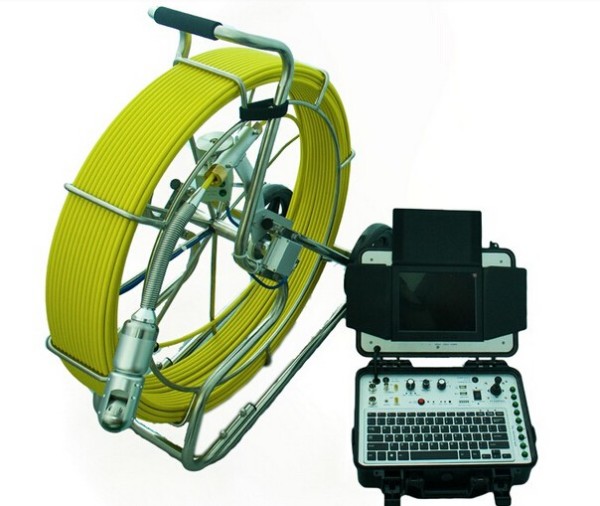

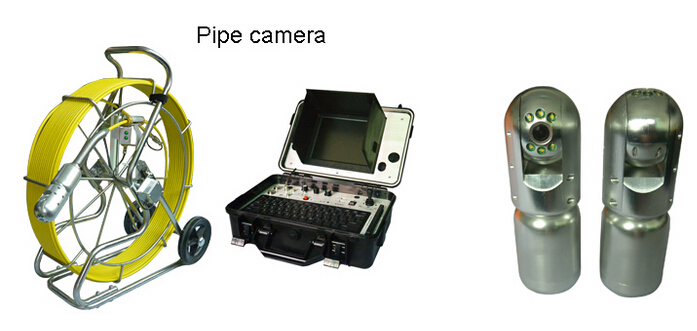

sewer pipeline camera video pipe inspection camera FLX-P128REKC
For dia 100mm to 600mm(4″- 24″) pipelines

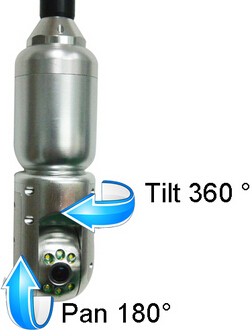

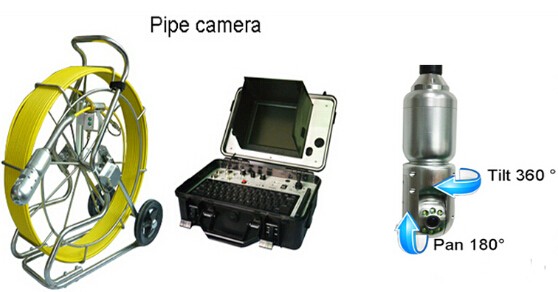

Ø50mm Pan & Tilt stainless steel color camera head
6pcs adjustable LED
Reel with 60m/120m of 9mm dia Push Rod
8″ LCD screen with sunshade, DVR supports voice recording, 동영상
recording, taking picture by any SD card (8GB SD card Included)
Meter/foot counting, text writing
Includes 3 skids: 109mm; 137mm;220mm
All components included | 50mm 팬 &Tilt camera head, 60m/120m push rod, control box, 8G SD 카드 and the Reader, 8inch LCD monitor, counter, keyboard, Li-ion battery, microphone, 충전기, skids, 케이블을 연결하다, engineering plastic case, operate manual |
모델 | FLX-P128REKC |
50mm PT camera head | 카메라 헤드 크기 | ø50mm x 154mm | Camera casing material | Aluminum alloy | 카메라 렌즈 소재 | Sapphire glass | 감지기 | 1/4″ color CMOS | Static view angle | 120 도 | 센서 해상도 | 단짝:720H×576V NTSC: 720H×480V; | Horizontal resolution | 700TVL | Shutter | 1s—1/10000s | Frame rate | 단짝:50 fields/sec NTSC: 60 fields/sec | TV system | PAL/NTSC optional | 비디오 출력 | 1.0 Vp-p / 75Ω(CVBS video signal) | Lighting | 6pcs high intensity white LED lights | 방수복 | 방수 IP68 | 회전 | 팬 180 도, 경사 360 도 | Working voltage | DC 12V | Working current | 260mA Max | 근무 환경 | -10℃~60℃ |
|
LED Lights (adjustable) | LED Lights | 6LEDS |
Brightness of the LEDS | Controllable |
8inch screen | 화면 크기 | 8” LCD Monitor |
전원공급장치 | DC 12V |
Control box | 비디오 형식 | AVI |
Picture format | JPG |
메모리 카드 | 8G(Maximum 128G) |
Audio, 동영상, 사진, recording & playback function |
PT camera joystick |
Digital clock and calendar |
Recording pause function |
USB port connecting to PC |
On / off microphone audio recording button |
Up, down, 왼쪽, right adjustable |
Video input jack 3 options and video/audio output jack |
Keyboard | 언어:영어; |
Keyboard interface:USB import |
Max edit page:4pages |
Push rod | 길이 | 60m/120m standard cable; 50-150중(선택 과목) |
지름 | 9mm |
Distance counter | Meter/foot |
Centering skid | Dia 109mm/137mm/220mm | make the camera in the center of the pipe, and protect the camera head |
전원공급장치 | Li-ion Battery | DC12V 8800mah |
Working time | In operation(LED on): 6 시간 |
사례 | 재료 | engineering plastics |
Color optional | Black |
The total weight includes all components | 45킬로그램; 90X45X95cm / 53X22X48cm |
All components
included
50mm 팬 &Tilt camera head, 60m/120m push rod, control box, 8G SD card and the Reader, 8inch LCD monitor, counter, keyboard, Li-ion battery, microphone, 충전기, skids, 케이블을 연결하다, engineering plastic case, operate manual
모델 FLX-128REKC-PT
50mm PT camera head 카메라 헤드 크기 ø50mm x 154mm
Camera casing material Aluminum alloy
카메라 렌즈 소재 Sapphire glass
감지기 1/4″ color CMOS
Static view angle 120 도
센서 해상도 단짝:720H×576V NTSC: 720H×480V;
Horizontal resolution 700TVL
Shutter 1s—1/10000s
Frame rate 단짝:50 fields/sec NTSC: 60 fields/sec
TV system PAL/NTSC optional
비디오 출력 1.0 Vp-p / 75Ω(CVBS video signal)
Lighting 6pcs high intensity white LED lights
방수복 방수 IP68
회전 팬 180 도, 경사 360 도
Working voltage DC 12V
Working current 260mA Max
근무 환경 -10℃~60℃
LED Lights
(adjustable) LED Lights 6LEDS
Brightness of the LEDS Controllable
8inch screen 화면 크기 8” LCD Monitor
전원공급장치 DC 12V
Control box 비디오 형식 AVI
Picture format JPG
메모리 카드 8G(Maximum 128G)
Audio, 동영상, 사진, recording & playback function
PT camera joystick
Digital clock and calendar
Recording pause function
USB port connecting to PC
On / off microphone audio recording button
Up, down, 왼쪽, right adjustable
Video input jack 3 options and video/audio output jack
Keyboard 언어:영어;
Keyboard interface:USB import
Max edit page:4pages
Push rod 길이 60m/120m standard cable; 50-150중(선택 과목)
지름 9mm
Distance counter Meter/foot
Centering skid Dia 90mm/140mm/220mm make the camera in the center of the pipe, and protect the camera head
전원공급장치 Li-ion Battery DC12V 8800mah
Working time In operation(LED on): 6 시간
사례 재료 engineering plastics
Color optional Black
The total weight includes
all components 45킬로그램;
90X45X95cm / 53X22X48cm
