サーマルイメージング検索カメラFLX-LD360-4K-IT

Thermal image Resolution: 256*192ピクセル

Detector&nbspPolycrystalline Silicon Uncooled Focal Plane Array

Wavelength coverage&nbsp8—14um

Lens/Field angle&nbsp4mm /F1.0 / FOV 64°*49°

Temperature range&nbsp20℃ to 550℃ (-4°F to 1022°F)

control Temperature&注意(-40°C to 60°C)

Temperature measurement accuracy&nbsp±2°C or ±2%

Communication range&nbspabout 300 cubic meter

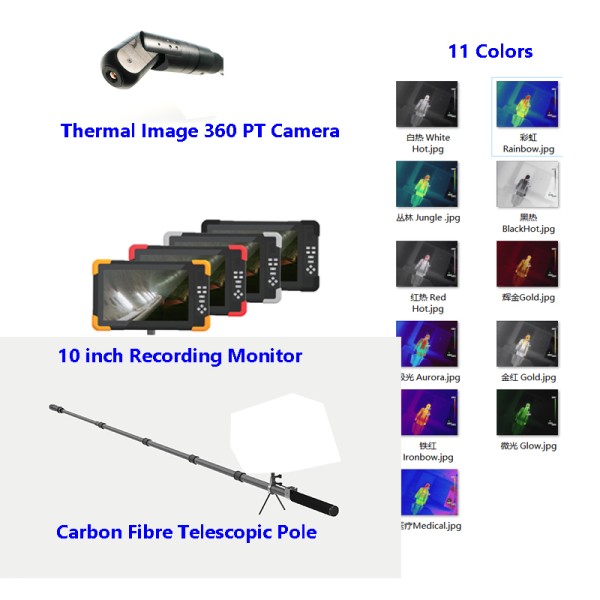

11 Color modes: &nbspWhite Hot /Gold /Ironbow /Rainbow /Glow/Aurora /Red Hot /Jungle/ Medical/Black Hot/Gold-Red

Heat tracking:&nbspSupport

Audio/communication range：について 300 平方メートル

Thermal image Resolution: 256*192px or 384*288 (オプション)

Detector&nbspPolycrystalline Silicon Uncooled Focal Plane Array

Wavelength coverage:&nbsp8—14um

Lens/Field angle:&nbsp4mm /F1.0 / FOV 64°*49°

Temperature range:&nbsp-20℃ to 550℃ (-4°F to 1022°F)

control Temperature:&注意(-40°C to 60°C)

Temperature measurement accuracy&nbsp±2°C or ±2%

Sound pickup ability: The sound at a distance of 10m from the identifiable camera, not exceed 30 decibels.

11 Color modes: &nbspWhite Hot /Gold /Ironbow /Rainbow /Glow/Aurora /Red Hot /Jungle/ Medical/Black Hot/Gold-Red

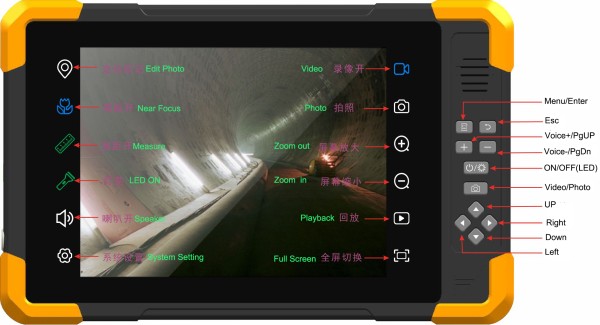

10.1インチ Touch 画面 DVR付き

Touch screen structure process:Capacitive touch

Video recording:&注意

4k(16:9): 3840×2160@25 /30fps

&nbsp2K(4:3): 2560×1944@25 /30fps

&nbsp2K(16:9): 2560×1440@25 /30fps

&nbsp1080p(16:9): 1920X1080@25 /30fps

ビデオ入力:4K 25fps,4K 30fps,2K 25fps, 2K 30fps,1080P 25fps,1080P 30fps,720P 25fps, 720P 30fps,CVBS pal, CVBS ntsc

ビデオ形式:MP4

写真:12MP、8MP、4MP、2MP

Video Output:HDMI 1080P

Compression mode:h. 264 video compression

Audio input/output:1.0VP-P (20Hz-20KHz)

Speaker Output: 1W

メモリーカード:TF card 2GB-256GB

言語:Varied

WiFi Protocol:802.11 a/b

WiFi Channel:&nbsp2.4000-2.4835Ghz

WiFi power:<16dBm

電源:DC 12V 2.5A

lithium battery:6200mAh( 48Wh)

Complete working time:6-8 時間; charging time: 7-8 時間

Waterproof grade:IP65

Screen size&重さ:L*W*H 30*19*1.8CM,865g

セクション:4 セクション
