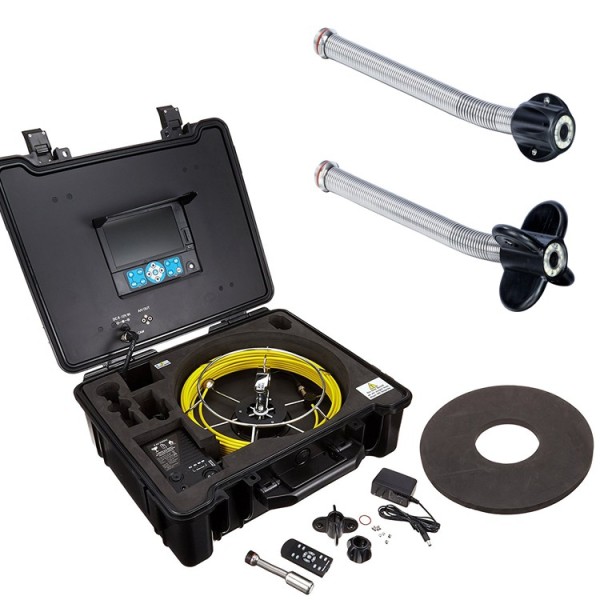

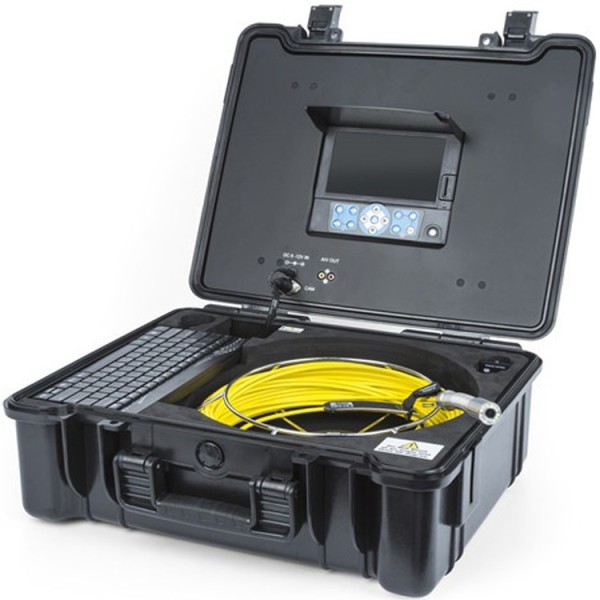

100ft sewer camera built-in 512Hz sonde with distance counter 100feet cable FLX-H107REKLC
$0.00
- 説明
- 問い合わせ
説明
100ft sewer camera built-in 512Hz sonde with distance counter 100feet cable
FLX-H107REKLC
1. 移動して操作しやすい, ポータブル.
2. The push camera is suitable for Diameter of 25-200mm sewer pipes.
3. The Push Camera is a great tool for the inspection of sewer pipes, ドレイン, 船, タンクとパイプの壁.
4. ビデオレコードをサポートしています, 写真のスナップ, built-in 512Hz sonde for location, メーター / 距離カウントのためのフットカウンター, LED adjust, english text input and waterproof IP 68(it can work underwater 20m depth).
5. Night language system (英語, ドイツ語, フランス語, スペイン語, イタリア語, 中国語, 日本語, ロシア, ポルトガル語)

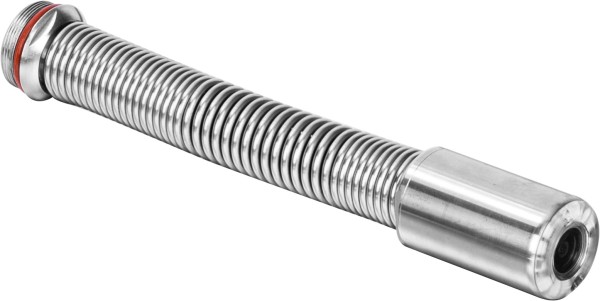

These unit features a camera head which view and capture every detail of your inspection. The camera head features a compact (23mm dia) detachable design which is completely waterproof(IP68) and contains 12pcs super bright adjustable LED lights to provide consistent illumination. The light intensity can be easily controlled to avoid flaring, and the sensitive CCD chip is protected by a thick scratch-proof sapphire glass.

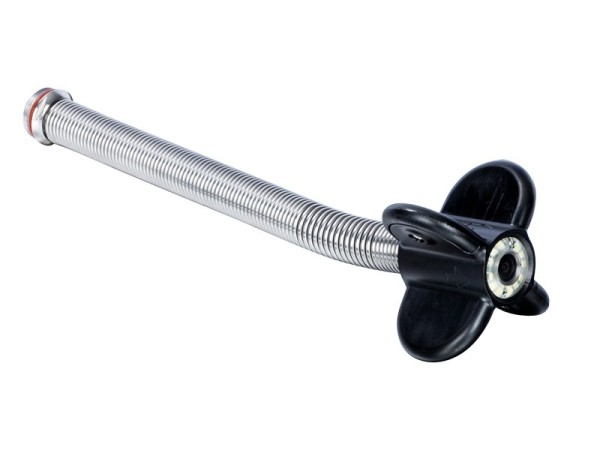

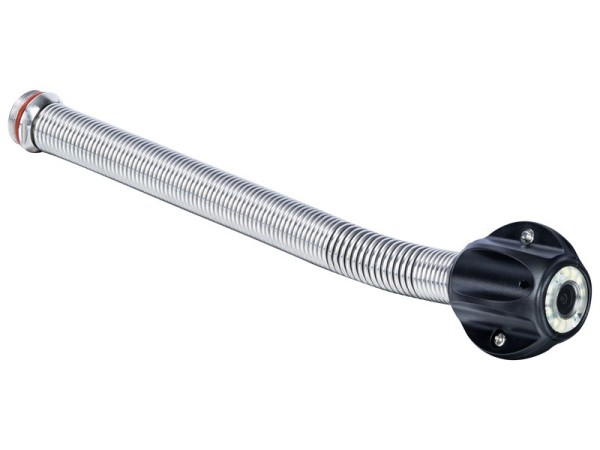

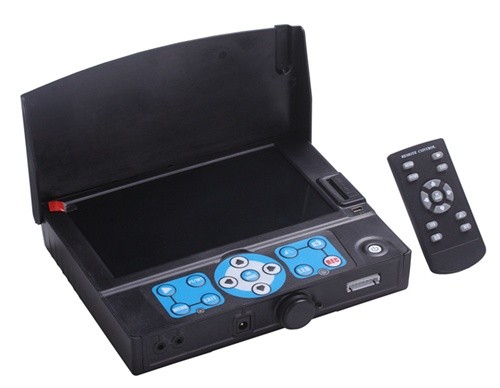

The 7” LCD color screen with control panel with video and image capture of your inspections saved directly to any SD memory card. And the state-of-the-art battery packs provide 7hours of continuous operation. Included in the set is 2 specially designed centering skids, to ensure that the camera head is placed directly in the center of the pipe and protect the camera head. Optional cable lengths for the push rod range from 20 meters to 40 メートル. Meter/Foot counter: it shows how long the camera go inside the pipeline on the screen. Keyboard input function & English wireless keyboard. Text input shows on the screen and can be keep in the video when recording.
カメラヘッドには位置情報用の512Hzゾンデが内蔵されています, all the locating-receiver that can receive 512Hz signal can receive the signal from the camera head.
| 23mm カメラヘッド | 23mm camera head built-in 512Hz sonde Sensor size:1/3 inch Sony CCD, 480tvl Focus Distance:20cm(approx) Depth of field:100cm(approx) 角度を表示します:120° Camera light: adjustable 12PCS white LEDs Camera work current:100M; Camera power supply: DC 12V Total Pixels: 仲間:720X576; NTSC:720X480 Camera glass material: sapphire glass Camera shell material: 304# ステンレス鋼 |
| The Screen & DVR Control Part | Size:7インチ 16:9 super bright high-definition LCD color screen with sunshade 解決: 800* 480 RGP Mirror and Flip: support image mirror, flip, mirror & flip OSD言語: 9 言語 (英語, ドイツ語, フランス語, スペイン語, イタリア語, 中国語, 日本語, ロシア, ポルトガル語) Digital clock and digital calendar Video Resolution: PAL 720*576FPS, NTSC 720*488 30FPS Max Video Encoding: H. 264 Photograph: 720*480/720*576 Audio Recording: Local Sound Out Put: TV and Audio output External Memory: Support SD memory Card, up to 32GB Data Output:USB2.0 to PC LED Driver: Built-in Dimmer Play Back: ビデオ, Photo and Audio 電源: DC 6-12V input Current Consume: 700mA最大 |

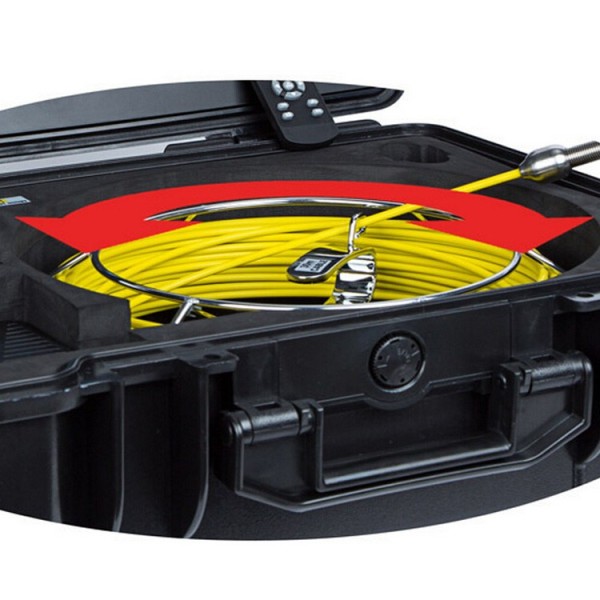

| The Cable Reel | Rotatable cable reel is mounted in the case そして can be rotated to pull out or back for convenient operation, and the operator do not need to take the cable reel out. Wire material: fiberglass rod Fiberglass length:20メートル(standard), 20m to 40m optional Fiberglass diameter: ø5.2mm Fiberglass color: yellow ケーブルホイールの材質: ステンレス鋼 距離カウンター: meter/foot optional, accurate to 0.1m or 0.3ft, it shows the cable length which you push into pipe on the screen |
| The Keyboard | English keyboard Text writing will show on the screen and can be keep in the video when recording |
| The Skids | 2作品(46/80mm直径) |
| The Supply Power | Power input: DC 9-12V input Power Capacity: 7.4v 5200mAh Li-ion Battery Life Time: 7時間 Charge time: 8時間 |
| その他のアクセサリー | 充電器, The connect cable, the operating manual |
