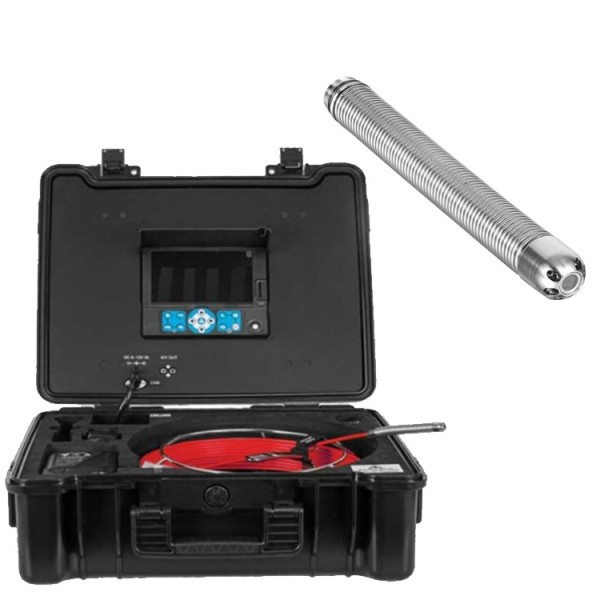

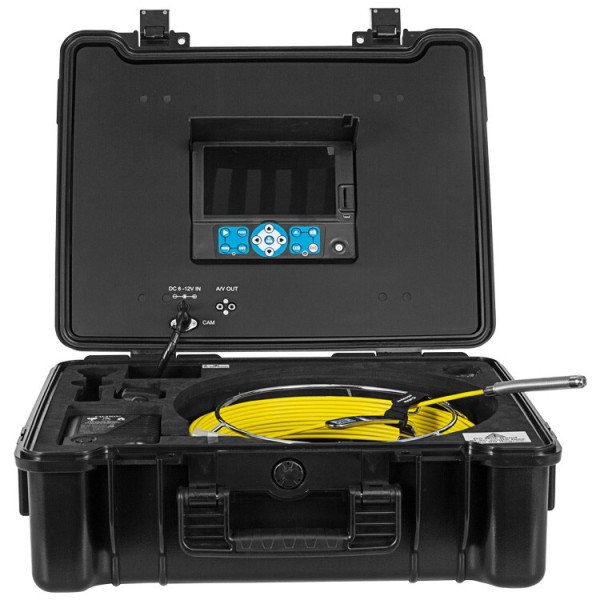

mini caméra d'inspection de canalisations avec compteur de distance et sonde 512 Hz intégrée FLX-H107REKLC-C14
$0.00
- Description
- Enquête
Description
14mm sewer pipe camera with distance counter and built-in 512Hz sonde
FLX-H107REKLC-C14
1. Facile à déplacer et à utiliser, portable.
2. The push camera is suitable for Diameter of 15-75mm(0.6inch-3inch)sewer pipes.

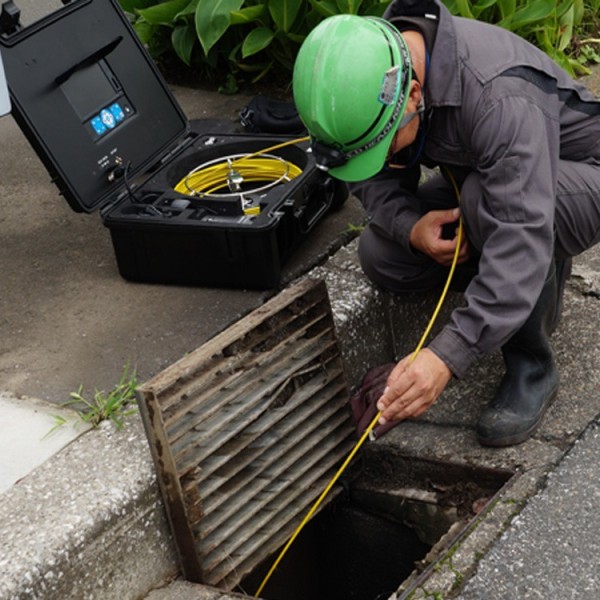

3. The Push Camera is a great tool for the inspection of sewer pipes, vidange, navires, réservoirs et parois de canalisations.
4. Il prend en charge l'enregistrement vidéo, image instantanée, mètre / compteur de pieds pour compter la distance, LED adjust, english text input, sonde 512 Hz intégrée pour la localisation and waterproof IP 68(it can work underwater 10m depth).
5. Night language system (Anglais, Allemand, Français, Espagnol, italien, Chinois, japonais, russe, portugais)
These unit features a camera head which view and capture every detail of your inspection. The camera head features a compact (14mmm il) detachable design which is completely waterproof(IP68) and contains 6pcs super bright adjustable LED lights to provide consistent illumination. L'intensité lumineuse peut être facilement contrôlée pour éviter l'évasement, and the sensitive CMOS chip is protected by a thick scratch-proof sapphire glass.

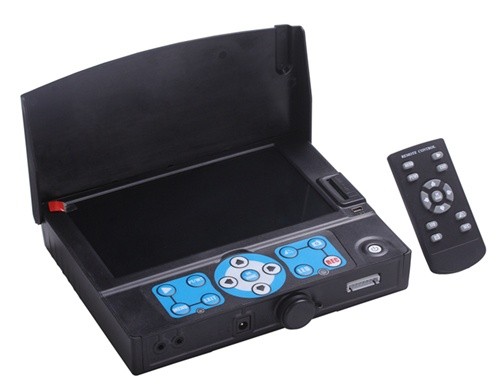

The 7” LCD color screen with control panel with video and image capture of your inspections saved directly to any SD memory card. And the state-of-the-art battery packs provide 7hours of continuous operation. Optional cable lengths for the push rod range from 20 meters to 40 mètres. Meter/Foot counter: it shows how long the camera go inside the pipeline on the screen. Keyboard input function & English wireless keyboard. Text input shows on the screen and can be keep in the video when recording. The camera head built-in 512Hz sonde for location, all the locating-receiver that can receive 512Hz signal can receive the signal from the camera head.

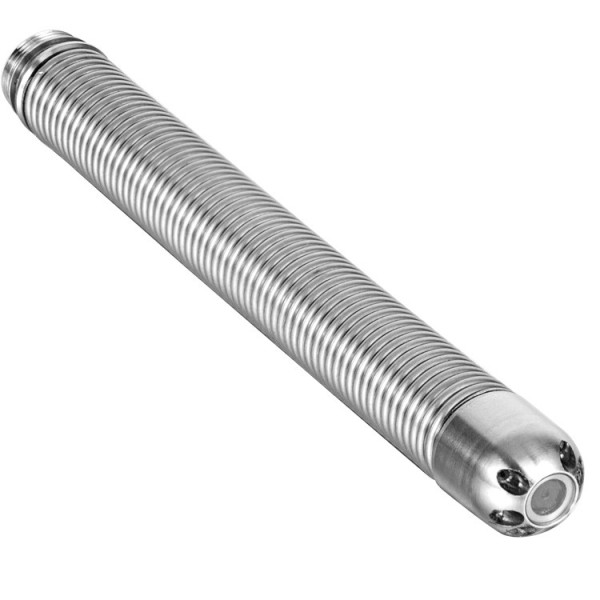

| 14mm Camera Head | 14mm camera head built-in 512Hz sonde Taille du capteur:1/4 inch CMOS, 400Tvl Focus Distance:10cm(approx) Profondeur de champ:20cm(approx) Angle de vue:55° Camera light: adjustable 6PCS white LEDs Camera work current:100M; Camera power supply: DC 12V Total Pixels: COPAIN:720X576; NTSC:720X480 Camera glass material: sapphire glass Camera shell material:6063 aluminum alloy camera |
| The Screen & DVR Control Part | Taille:7pouce 16:9 super bright high-definition LCD color screen with sunshade Résolution: 800* 480 RGP Mirror and Flip: support image mirror, retourner, mirror & retourner Langue OSD: 9 langue (Anglais, Allemand, Français, Espagnol, italien, Chinois, japonais, russe, portugais) Digital clock and digital calendar Video Resolution: PAL 720*576FPS, NTSC 720*488 30FPS Max Video Encoding: H. 264 Photograph: 720*480/720*576 Audio Recording: Local Sound Out Put: TV and Audio output External Memory: Support SD memory Card, up to 32GB Sortie de données:USB2.0 to PC LED Driver: Built-in Dimmer Play Back: Vidéo, Photo and Audio Alimentation électrique: DC 6-12V input Current Consume: 700mA Max |

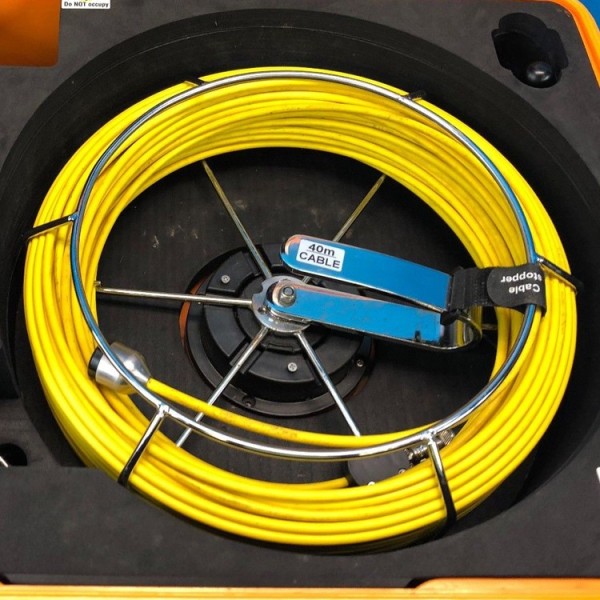

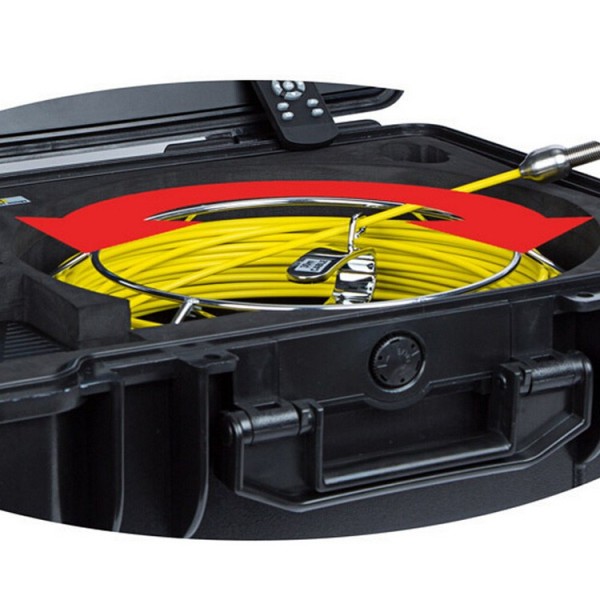

| The Cable Reel | Rotatable cable reel is mounted in the case et can be rotated to pull out or back for convenient operation, and the operator do not need to take the cable reel out. Matériau du fil: tige en fibre de verre Longueur de la fibre de verre:20m(standard), 20m à 40m en option Diamètre de la fibre de verre: ø5,2mm Couleur de la fibre de verre: jaune Matériau de la roue à câble: Acier inoxydable Compteur de distance: mètre/pied en option, précis à 0,1 m ou 0,3 pied, il montre la longueur du câble que vous poussez dans le tuyau sur l'écran |
| The Keyboard | Clavier anglais Text writing will show on the screen and can be keep in the video when recording |
| The Supply Power | Power input: DC 9-12V input Power Capacity: 7.4v 5200mAh Li-ion Battery Life Time: 7heures Charge time: 8heures |
| Autres accessoires | Le chargeur, The connect cable, the operating manual |
