2-way WIFI / USB Articulating Videoscope FLX-CW40
$0.00
- وصف
- سؤال
وصف

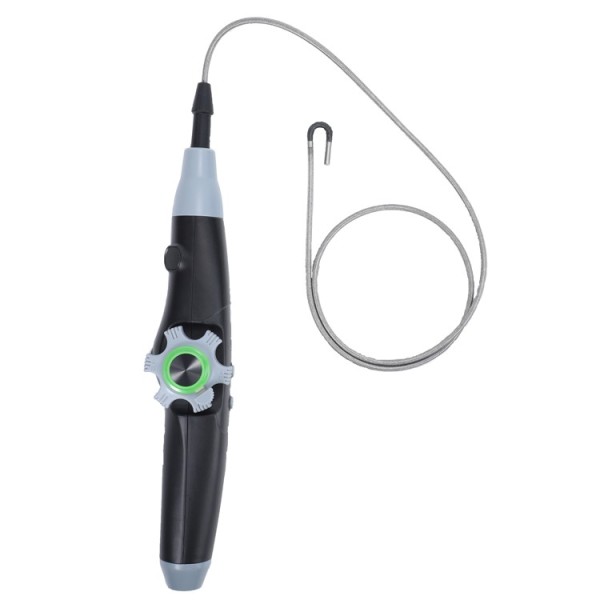

2-way WIFI / USB Articulating Videoscope FLX-CW40
طلب
1. Portable design, easy to operate, 4200 maH replaceable rechargeable lithium battery, long working time, check the corrosion, crack, welding, foreign matter, wear and internal parts processing of various industrial pipelines or complex equipment in narrow space, and pass fine comprehensive detection;
2. In line with the ergonomic design concept, the appearance of atmosphere, the use of perfect feeling, one hand control;
3. Various specifications of cameras are optional;
4. It can rotate in two directions(2-way articulation) by mechanical control, with single side bending greater than 150 درجات(up to 180°), flexible control, labor-saving, high work efficiency and low failure rate compared with electric power steering;
5. USB / WiFi can be used to connect computer / mobile phone / iPad；
Product parameters
| Insertion Tube Specifications | ||||||||
Insert tube diameter: Φ4.0mm بكسل: 1,000,000 pixels Visual Angle: 120درجات depth of field:10-80مم light source:LED light source (ring lamp) Hard end:15مم Length of inserted tube (معيار): 1.0م سteel wire tube 2-way articulation:over 150°, up to 180° | |||||||||

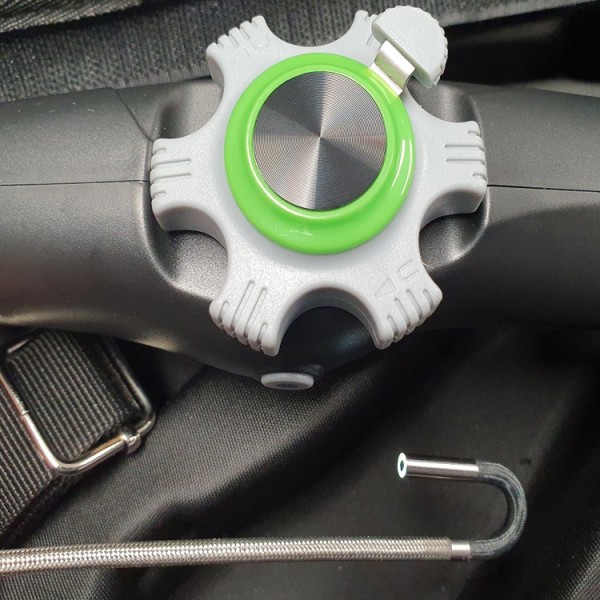

Joystick control and orientation | Two-way steering | Fixed position | Fixed internal resistance |
| |||||
Guide angle | One side > 90 ° | Guide distance and length | Standard 30cm or 1 متر |
| |||||
Axial control | 360° axial rotation | Insertion tube | 4-layer tungsten braided tube |
| |||||
System weight | Complete equipment including chassis: 2.5 kg bare metal:<1kg | حجم المضيف | NO |
| |||||
مزود الطاقة | Lithium battery: 3.7الخامس, 4200 maH | Structural material | Plastic drop PC shell |
| |||||
LCD screen | NO | Dimming | manual adjustment |
| |||||
Data I/O port | USB2.0 port, WiFi wireless connection | RAM | حاسوب, cell phone storage |
| |||||
White balance | Automatic white balance | White balance | Automatic white balance |
| |||||
Image function | Image mirroring, التكبير, preview | language support | يدعم 7 countries |
| |||||
دisplay and system configuration | |||||||||
Host system operating temperature | -10°C~50°C, the LCD panel must be warmed below 0°C | Relative humidity | 90% الأعلى, no condensation | ||||||
Video probe operating temperature | -20 °C ~ 60 درجة مئوية, أقل 0 °C should reduce the guide operation | waterproof | Probe and objective lens can withstand IP67 waterproof | ||||||
Storage temperature | -20°C~60°C |
|
| ||||||
